The all-new Leica BLK360 is an advanced precision imaging laser scanner. At the push of a button, users can capture a full scan with spherical images in only twenty seconds—over five times faster than the BLK360 G1. Blaze through job sites with best-in-class rapid scanning that doesn’t compromise on quality, while VIS technology automatically combines your scans on-site to speed up your workflow and help you make sure your datasets are complete. The BLK360 enables users to work faster and smarter while getting the data they need right away.

BLK360 data is valuable for many uses—from traditional AEC to mind-bending VFX and VR—and users can easily transfer and work with it in your software ecosystem to create immersive and highly accurate deliverables and experiences.

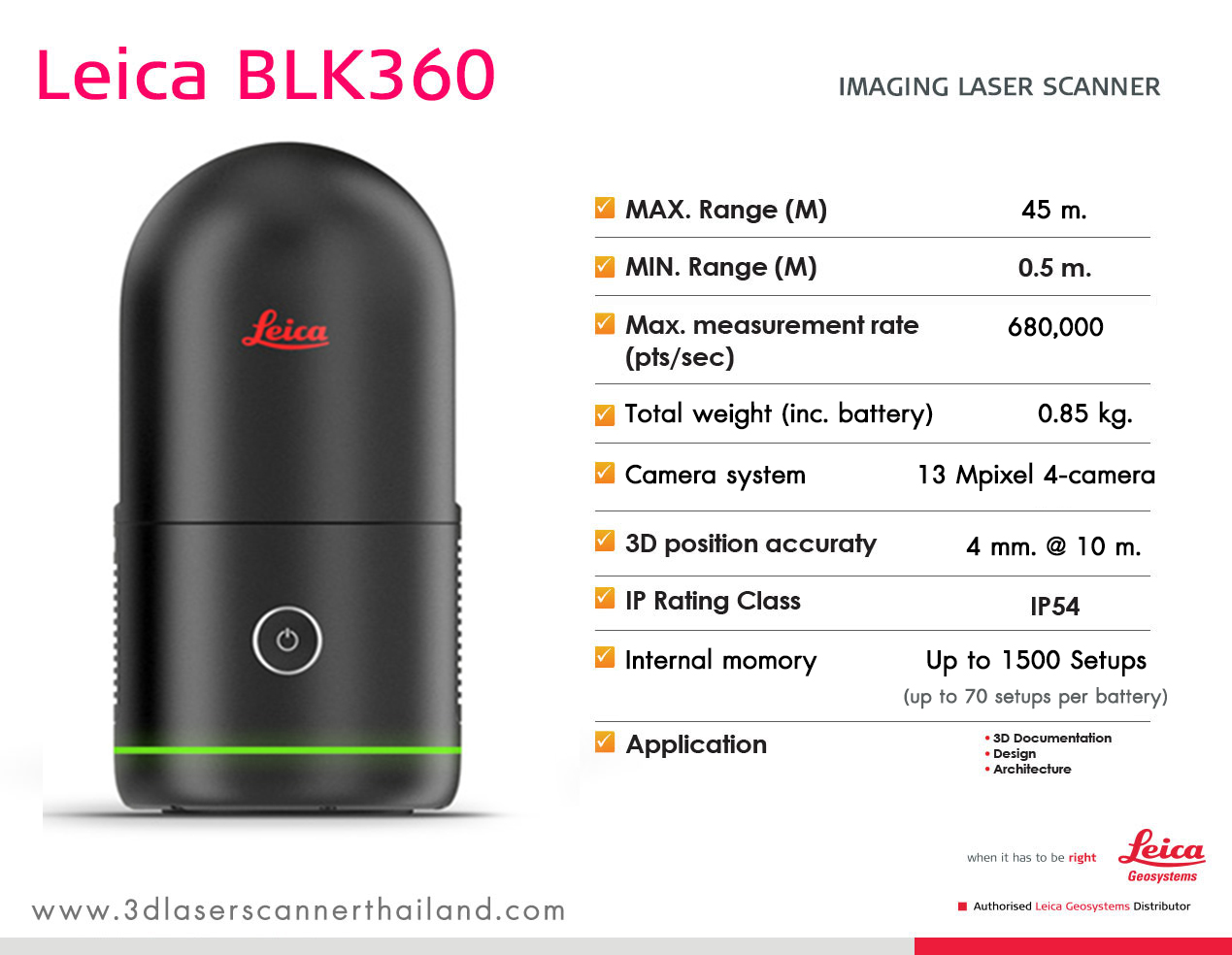

BLK360 Imaging Laser Scanner
- Four scan settings capture data in 7, 13, 30, or 75 seconds at 680,000 points per second
- Rich high dynamic range (HDR) imagery with 5 bracket HDR
- Small and light, measuring 155x80mm and weighing just 850 g with batteries installed
- 5 times faster than the BLK360 G1, taking 20 seconds for a full-dome scan with photospheres
- Visual Inertial System (VIS) automatically pre-registers scans in the field
- High speed data transfer via USB-C and WiFi

Users can control the unit with the Leica Cyclone FIELD 360 mobile app, which enables pre-registered scans with the VIS and streams image and point cloud data to an iPad or final project data to Cyclone REGISTER 360 or Cyclone REGISTER 360 (BLK Edition) via Wi-Fi, with full data synchronization between devices. With automated workflows in both software offerings, the new BLK360 dramatically streamlines the reality capture. Simple export of LGS, RCP, or E57 files makes working with point cloud data downstream simple and efficient, allowing users to spend less time processing data and more time creating meaningful deliverables.

The BLK360 also includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, and quality control, as well as export E57 files. Available for iOS and Android.

The new BLK360 also makes it easy to get your data into your preferred software and to share your scans with others. Directly upload your data to HxDR with automatic conversion to OBJ and cloud-based visualization, which also allows others to work with and download your data. Or transfer your data to Leica Cyclone REGISTER 360 or export to E57 via USB-C or WLAN for scan-to-BIM workflows.
