3D Laser Scanner

Leica BLK2GO

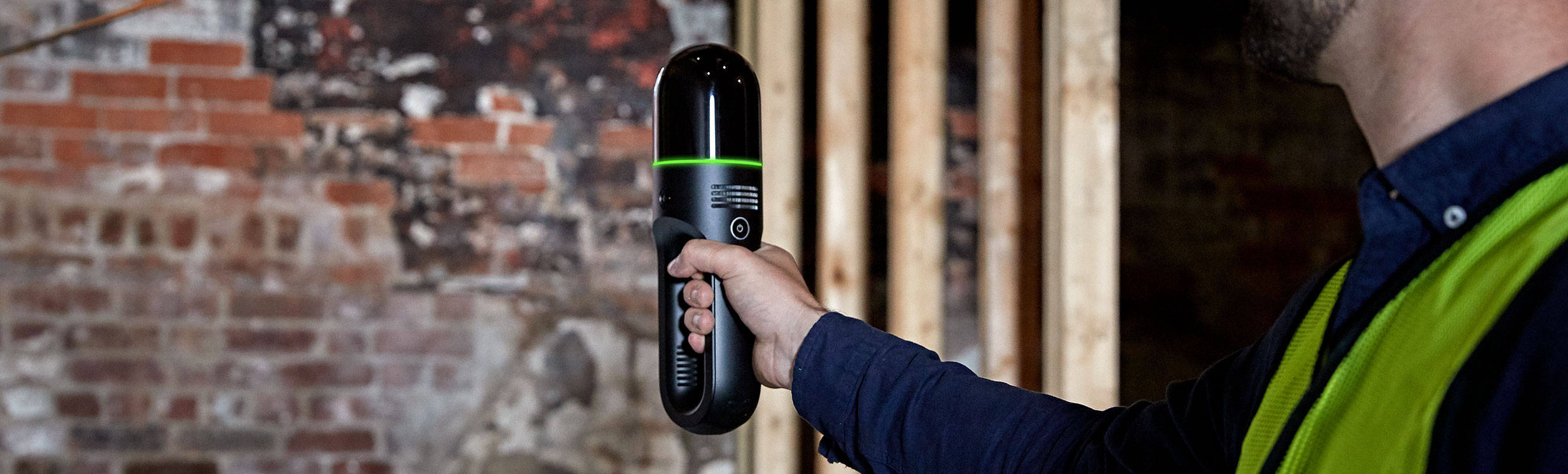

Leica BLK2GO Handheld Imaging Laser Scanner

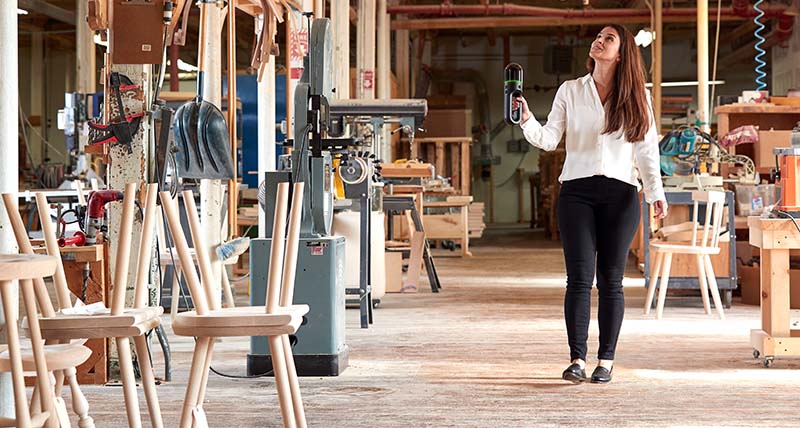

The BLK2GO handheld imaging laser scanner recreates spaces in 3D as you move. It captures images and dimensionally accurate point clouds in real-time and uses SLAM technology to record your trajectory through space.

The BLK2GO handheld imaging laser scanner

FAST

Scan as you go with no interruptions. Digital reality capture of the space around you happens in real time as you move through it.

AGILE

Scan over and under objects, through rooms and doorways, around corners, and up and down stairwells. Using SLAM spatial awareness technology, BLK2GO knows where it is and where it has been in space.

SEAMLESS CAPTURE

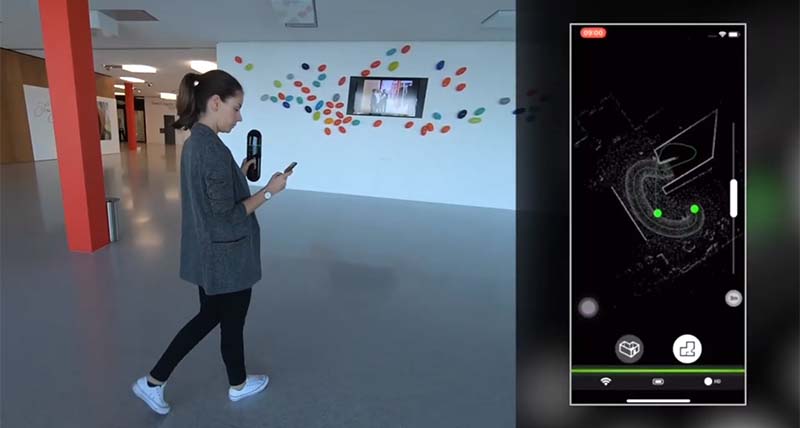

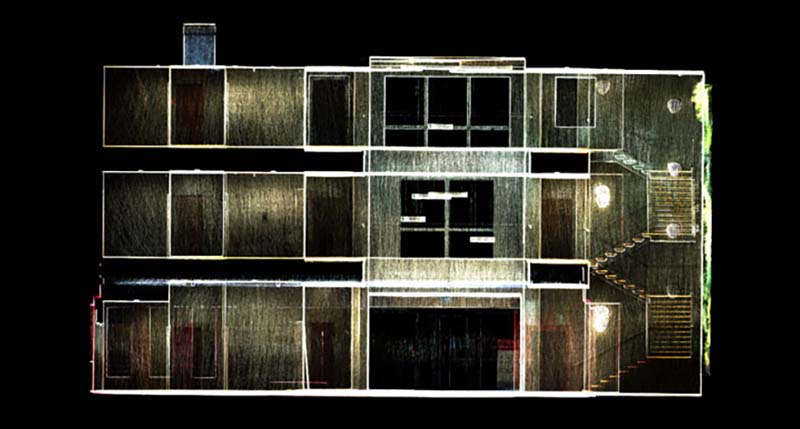

Like a torch for visualising three-dimensional reality, the BLK2GO automatically builds 3D point clouds while in motion. From the moment you begin a scan session until the moment you turn off the BLK2GO, all imagery and 3D data are combined.

UNBOUND

No tripod. Onboard data collection. Continuous scanning on rechargeable battery power.



BLK2GO Specs


DUAL AXIS LIDAR DOME

The smallest dual axis LiDAR available with best-in-class accuracy, enclosed in a fully protected and encapsulated dome that scans up to 420,000 points per second. Both axes constantly spin while scanning.

MULTICAMERA VISION SYSTEM

The BLK2GO’s vision system is a 12-megapixel detail camera for brilliant high-contrast imagery plus three panoramic cameras for visual navigation via SLAM, point cloud colourisation and capture of panoramic imagery.

THE GRANDSLAM

The GRANDSLAM (Simultaneous Localization and Mapping) is a combination of high-speed dual axis LiDAR, multi-camera vision system and an inertial measurement unit that makes the BLK2GO self-navigating.

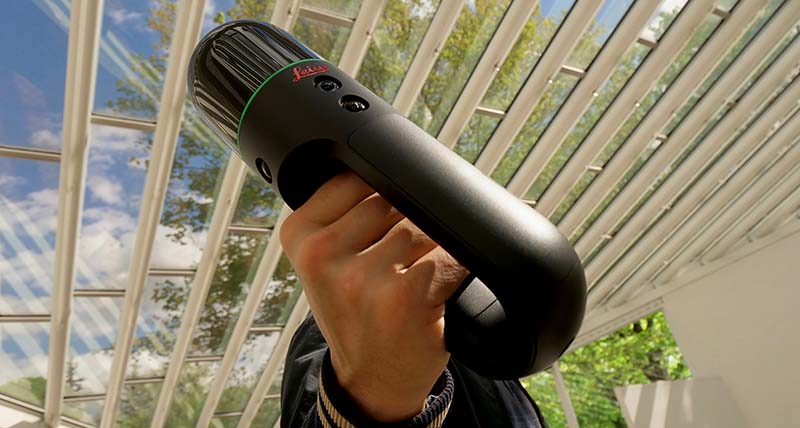

LIGHTWEIGHT ALUMINUM CONSTRUCTION

Weighing in 775 grams (1.7 lbs.) with battery, the BLK2GO’s matte-finish aluminum construction allows for excellent dexterity and freedom of movement.

SMART HANDLE

The BLK2GO’s handle contains WLAN connectivity, a rechargeable battery capable of 45 minutes of continuous scanning, data storage for six hours of scans, a USB-C port for fast data transfer and edge computing.

ADVANCED LIGHTGUIDE

The light guide that encircles the BLK2GO is simple, intuitive and communicative to users of all skill levels. It provides user guidance while scanning and communicates the device status and data quality.
